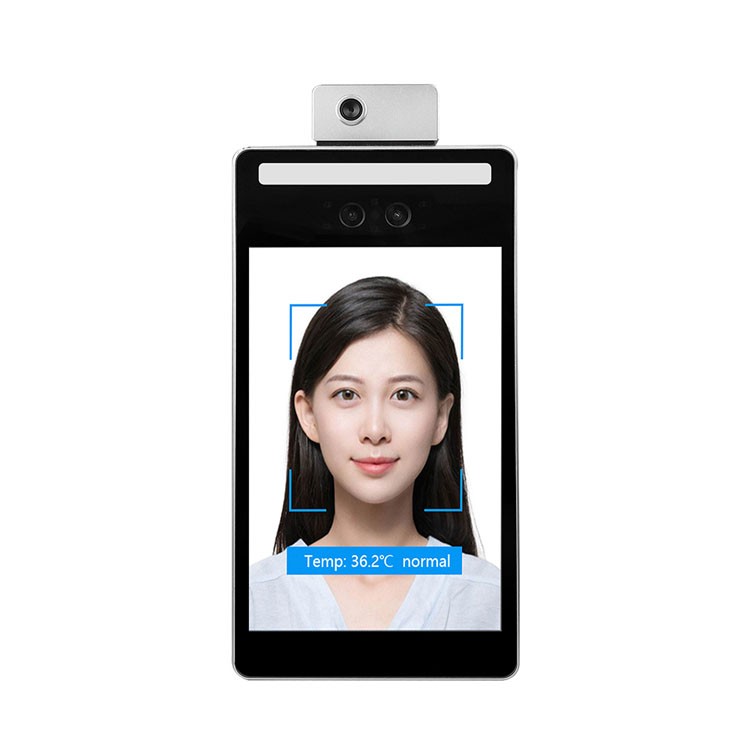

Face Recognition F2-TH Long-range Infrared Temperature Measurement

The latest face temperature measurement equipment can integrate functions such as attendance, temperature measurement and access control.
Share :
  • Product Description
  • Product Parameters
  • Download

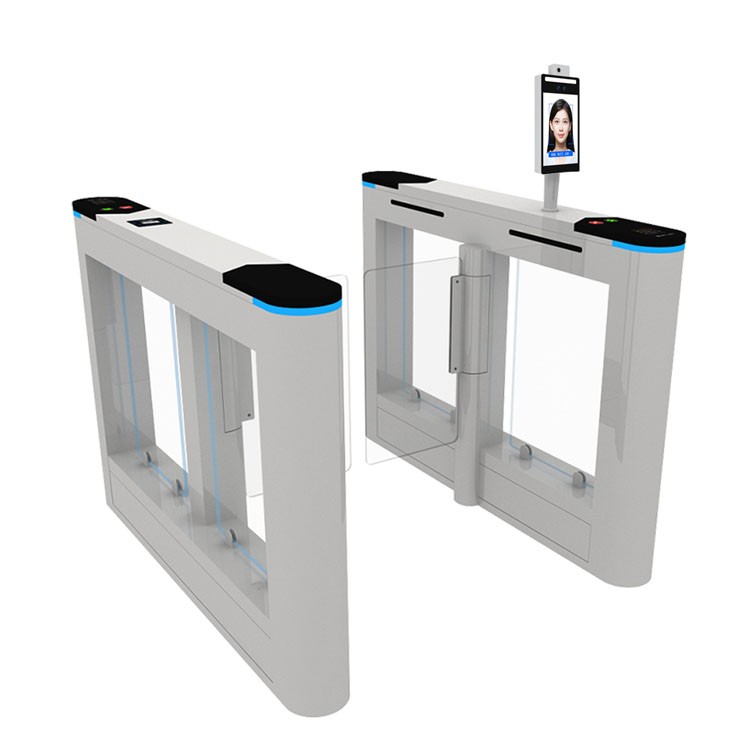

The latest face temperature measurement equipment can integrate functions such as attendance, temperature measurement and access control. Installing the equipment on the gate can realize automatic temperature measurement, mask recognition, high temperature alarm and other functions, which are designed for epidemic prevention and control in public places . The introduction of abnormal body temperature screening, non-contact automatic and precise temperature measurement, access control, automatic warning and temperature measurement data traceability, etc., greatly improves work efficiency, replaces close-range, contact temperature measurement, and reduces waiting in line The resulting gathering of people effectively avoided the risk of epidemic spread.


Features of Face Thermal Camera

Ø Temperature abnormal alarm;

Ø Face entrance guard,access control,brush face temperature measuring joint entrance guard system in and out at the same time;

Ø Swipe card for attendance,to replace the traditional fingerprint puncher machine ,which will may bring cross infection risk;

Ø Not wearing masks detection and real-time alarm;

Ø Real-time upload temperature data, data query can be performed in the background;

Ø Registered for in and out of the staff for smart management;

Ø The black and white list confirms the alarm to detect intruders or missing persons;


Face Recognition F2-TH Long-range Infrared Temperature MeasurementFace Recognition F2-TH Long-range Infrared Temperature MeasurementFace Recognition F2-TH Long-range Infrared Temperature MeasurementFace Recognition F2-TH Long-range Infrared Temperature MeasurementFace Recognition F2-TH Long-range Infrared Temperature MeasurementFace Recognition F2-TH Long-range Infrared Temperature Measurement

Face Recongniiton Temperature Device

Product Model

F2-TH

Size

8 inch, full viewing angle, 170 degree IPS LCD screen

Screen Resolution

800*1200









Camera

Type

RGB

Infrared

Resolution

2 million pixels

Aperture

F2.8

Focal Length

3.18mm

White Balance

Automatic

Wide Dynamic

Support

Vertical Wide Angle

Face Recognition F2-TH Long-range Infrared Temperature Measurement

Horizontal Wide Angle

Face Recognition F2-TH Long-range Infrared Temperature Measurement







Basic specifications

Operating System

Android7.1 or above

Equipment Power

DC12V(±10%)3A

Equipment Power Consumption

15w MAX

Relative Humidity

0% ¨ 90%(In a non-condensing state

)

Operating Temperature

-20  ~60(Wall-mounted design: the junction with the eight or six boxes is not waterproof, and a ceiling is required)

Protection Cass

IP55

Use Environment

Indoor/Ourdoor

Equipment Size

275.2mm*123.2mm*30.2mm

Hardware Configuration





Identification Method

Brush  Face

Mifare card (optional: external purchase module required)

Resident ID card (optional: external purchase module required)

Face recognition parameters

Face verification accuracy >99%

Face recognition distance 0.5m-1.5m

Face ID card comparison time  600MS

Local capacity   20,000 sheets

Port

Micro USB 1pcs

RJ45 Gigabit 1pcs

Relay, Wiegand Interface, RS-485,Door Sensor, Door Switch

Support

Infrared/White  Fill Light

Basic Parameters

Indicator Light

Support authentication success, Green light prompt; Authentication failure, Red light prompt

WIFI

2.4G 802.11b/g/n

Bluetooth

Bluetooth4.0

4G LTE

Full Netcom (optional: custom purchase required)

Temperature Measurement Module

Operating Temperature

-20℃ ~ +85℃

Storage

Temperature

-40℃ ~ +85℃

Power Consumption

< 0.3w

Pixel

32*32 Real-time temperature output

Measurement Accuracy

I + 0.5

Measuring Distance

0.5 ~ 1.5m
