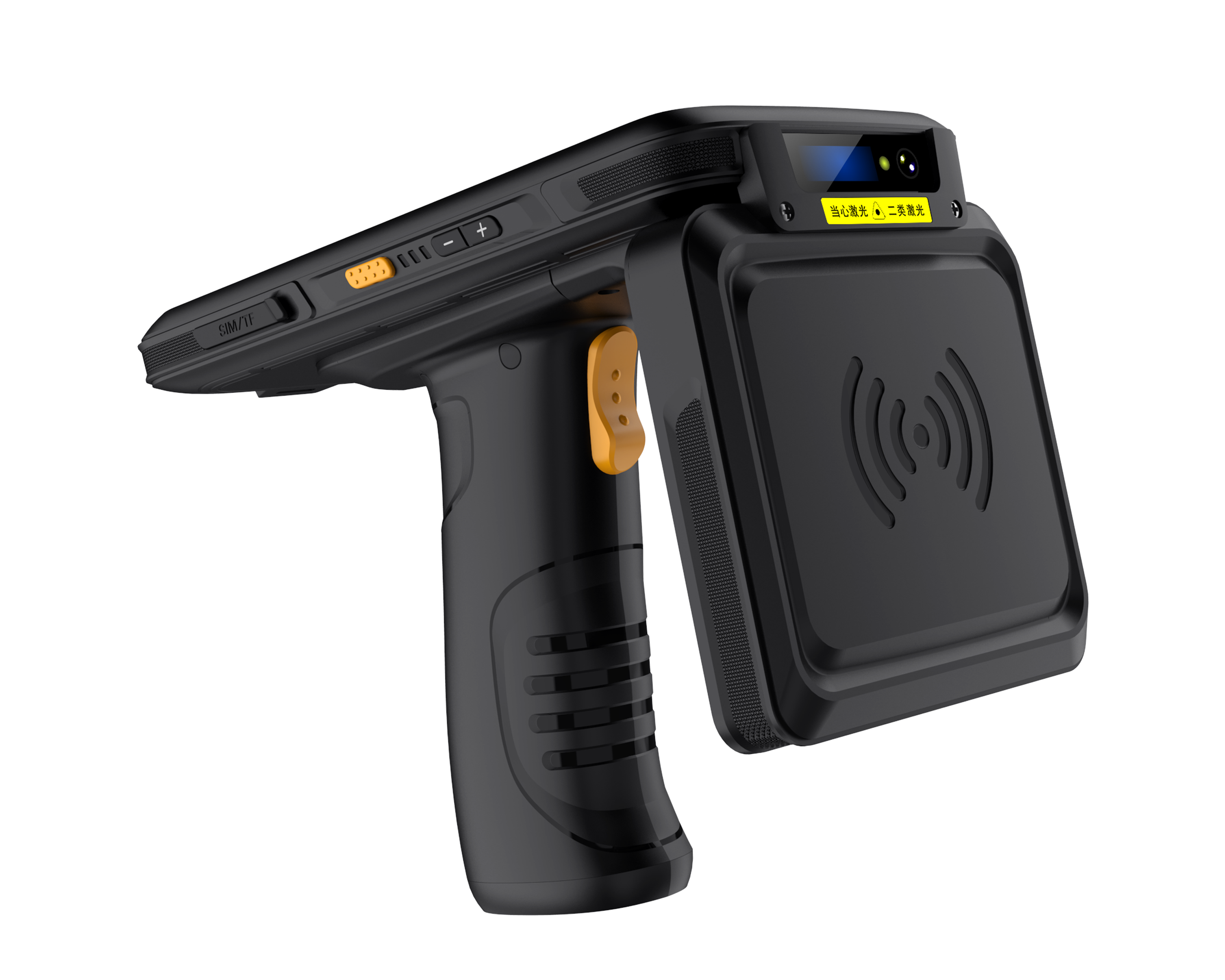

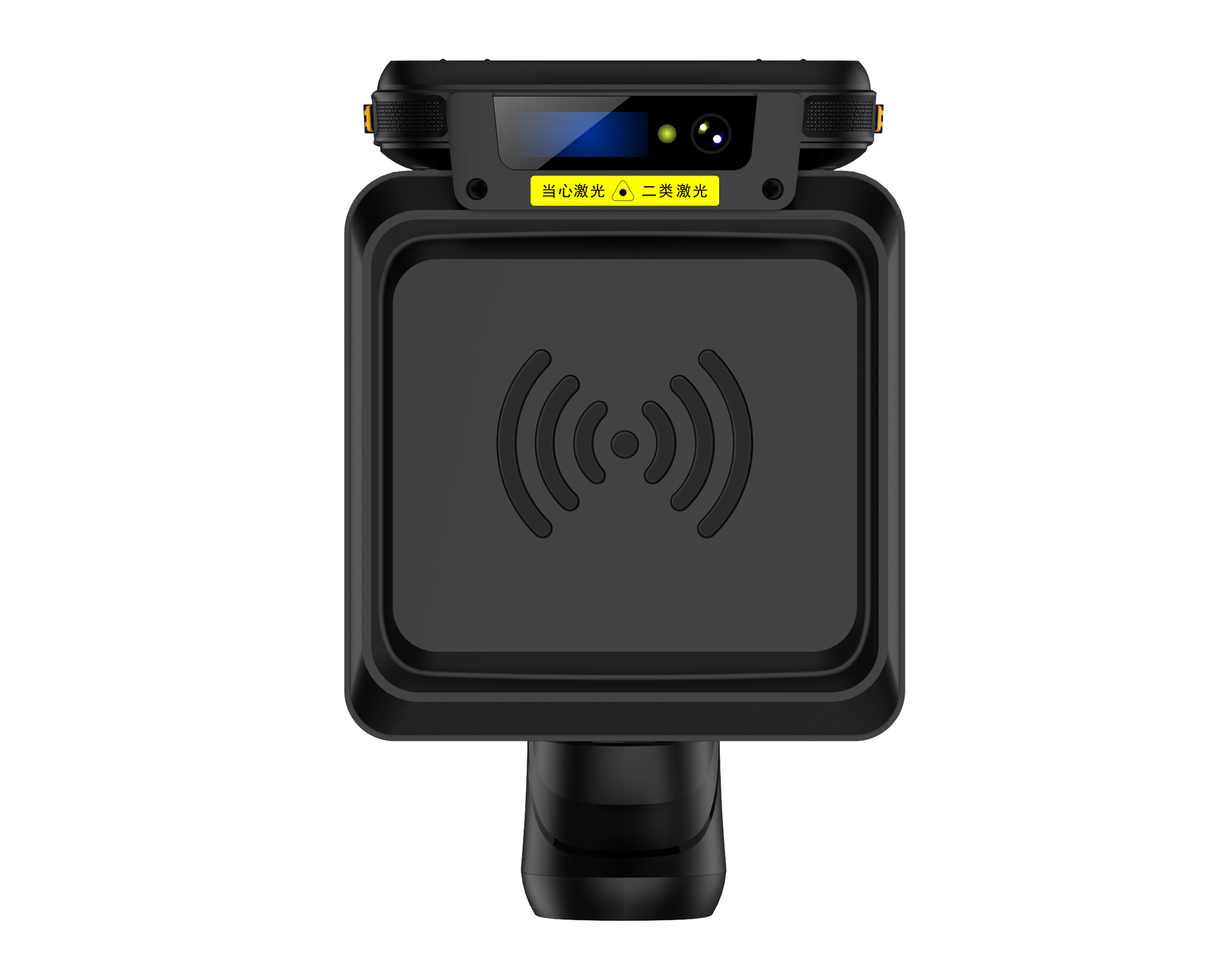

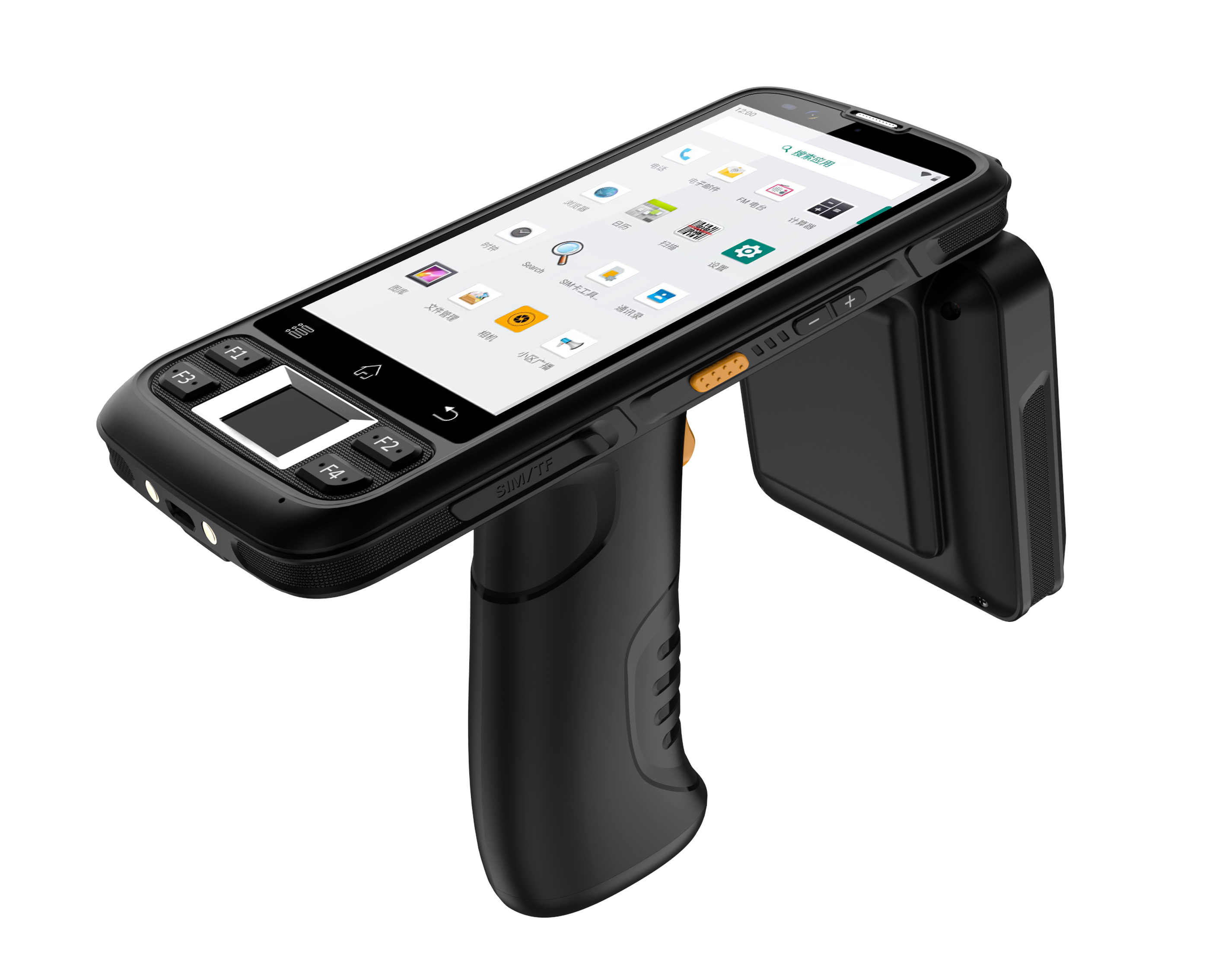

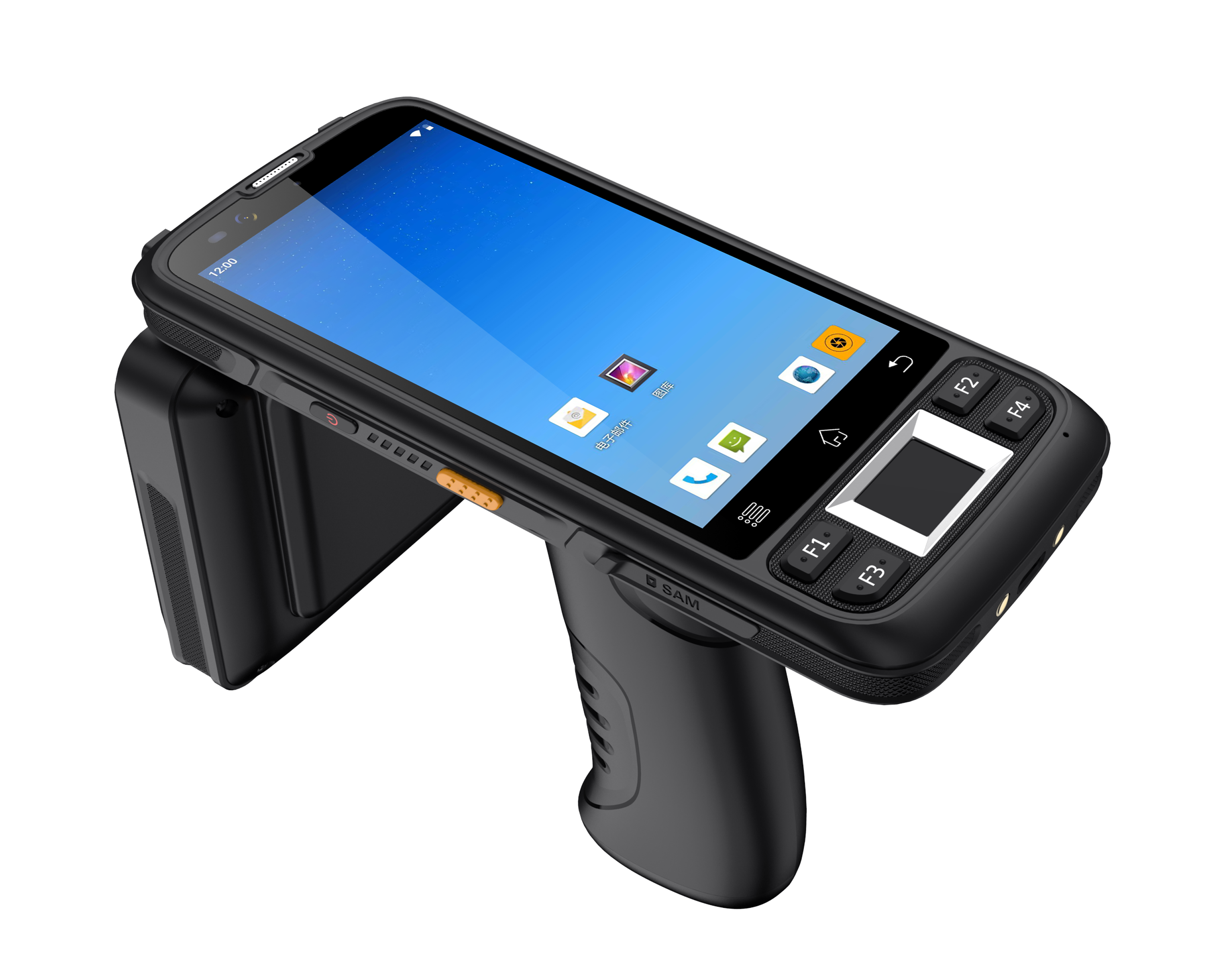

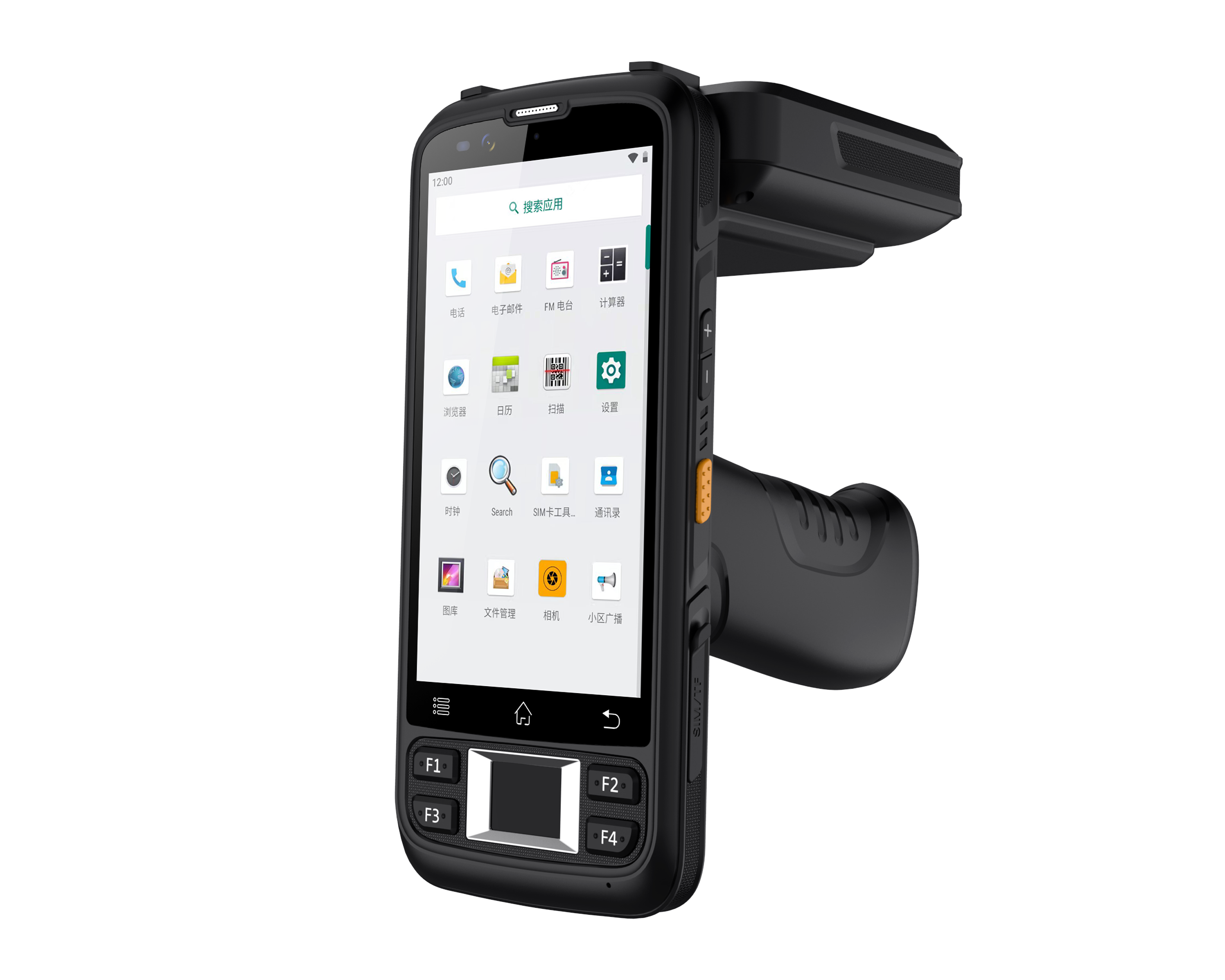

SM720S UHF Android Long Distance Handheld Barcode Scanner

4G Smartphone Handheld 1D/2D Barcode Scanner PDA Device Android 12 For Inventory Data Terminal
Share :
  • Product Description
  • Product Parameters
  • Download

SM720S is a high-performance UHF smart handheld terminal developed and upgraded by ScanMax IOT. This product integrates powerful UHF UHF read and write functions, with better sensitivity, which helps to achieve more accurate and faster RFID tag collection. Using Android12 operating system, equipped with high-performance octa-core processor, with more than 10000mAh battery life, widely used in asset management, clothing inventory, vehicle management, high-speed charging, warehouse management, financial management, fingerprint verification and other fields


SM720S RFID Handheld Terminals

5 custom Buttons set at will

R2000 Ultra High Frequency Module

25m Ultra Distance reading and writing

5 inch Large Screen

UHF Android Smart Computer PDA Barcode Scanner

UHF Android Smart Computer PDA Barcode Scanner

Android Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode Scanner

Android Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode ScannerUHF Android Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode ScannerAndroid Smart Computer PDA Barcode Scanner

Android Smart Computer PDA Barcode Scanner












Product model(SM720S)
TypeDetailStandard   configurationOptional

Dimensions178*83*17mmNA
Weight580gNA
ColorBlack   (bottom shell black, front shell black)
LCDDisplay size5.0#(Select 5.72#full screen)NA
Display   resolution1280*720/ 5.2'' IPS LTPS 1440 x 720NA
TPTouch PanelMulti-touch   panel, Corning grade 3 glass toughened screenNA
CameraFront camera5.0MP(optionalNA
Rear   camera13MP   Autofocus with flashNA
SpeakerBuilt-inBuilt-in   8Ω/0.8W waterproof horn x 1NA
MicrophoneBuilt-inSensitivity:   -42db, Output impedance 2.2kΩNA
BatteryTypeRemovable   polymer lithium ion batteryNA
Capacity3.7V/10000mAhNA
Battery   lifeAbout   8 hours (standby time > 300h)NA
System Hardware Configuration
TypeDetailDescriptionOptional configuration
CPUTypeMTK   6763- Octa-coreNA
Speed2.0GHzNA
RAMMemory3GB   (2G or 4G optional)NA
ROMstorage32GB   (16G or 64G optional)NA
Operating SystemOperating   System VersionAndroid 12
NFCBuilt-inSupport ISO/IEC 14443A protocol, card reading   distance: 3-5cmHF
Network connection
TypeDetailDescriptionOptional
WIFIWIFI moduleWIFI   802.11 b/g/n/a/ac  frequency 2.4G+5G   dual band WIFI,NA
BluetoothBuilt-inBT5.0(BLE)NA
2G/3G/4GBuilt-inCMCC   4M:
    LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
      WCDMA 1/2/5/8
    GSM 2/3/5/8
NA
GPSBuilt-inSupportNA
Data Collection
TypeDetailDescriptionOptional
FingerprintOptionalFingerprint module: capacitive USB press module
Image size:256*360pi xei;FBI PIV   FAP10 certification;
Image resolution:508dpi
International standard:
Authoritative certification:
Acquisition speed: single frame   image acquisition time ≤0.25s
QR codeOptionalHoneywell 6603&zebra se4710&CM60
Optical resolution: 5mil
Scanning speed: 50 times/s
Support code type: PDF417,   MicroPDF417, Data Matrix, Data Matrix Inverse
      Maxicode,QR Code, MicroQR, QR   Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse

RFID functionLow frequencySupport 125k and 134.2k, effective recognition   distance 3-5cmOptional
High   frequency13.56Mhz,support   14443A/B;15693 agreement,effective recognition distance3-5cmOptionanl
UHFCHN   frequency:920-925MhzOptional
US frequency:902-928Mhz
EU frequency:865-868Mhz
Protocol standard:EPC C1   GEN2/ISO18000-6C
Antenna parameter:spiral   antenna(4dbi)
Card reading distance: according   to different labels, the effective distance is 8~25m
Reliability
TypeDetailDescription
Product reliabilityDrop height150cm, Power on status
Operating   Temp.‘-20   °C to 50 °C
Storage   Temp.’-20   °C to 60 °C
Tumble
    Specification
Six side rolling test up to 1000 times
HumidityHumidity:   95% Non-Condensing
