F6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control System

Share :
  • Product Description
  • Product Parameters
  • Download

This product is a convenient, safe industrial-level visual face recognition all-in-one machine. In view of the needs of large capacity, high performance, wide application, customizable and other aspects existing in the process of face recognition application, an intelligent face recognition hardware launched can be combined with face recognition algorithm, without user cooperation, to achieve live detection, dynamic face recognition, to provide users with the use environment of the safety area.


Features of Face Recognition Temperature

* Armed with latest RK3566 board,Android 11Os

* Software: basic software with SDK and APl;

* Supports WIFI + 10 / 100M network and rich peripheral security interface


F6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control SystemF6CS-T OEM Gate Type Smart Face Recognition Terminal for Access Control System

Face recognition all-in-one machine terminal

Product module

F6

Product

features

major function

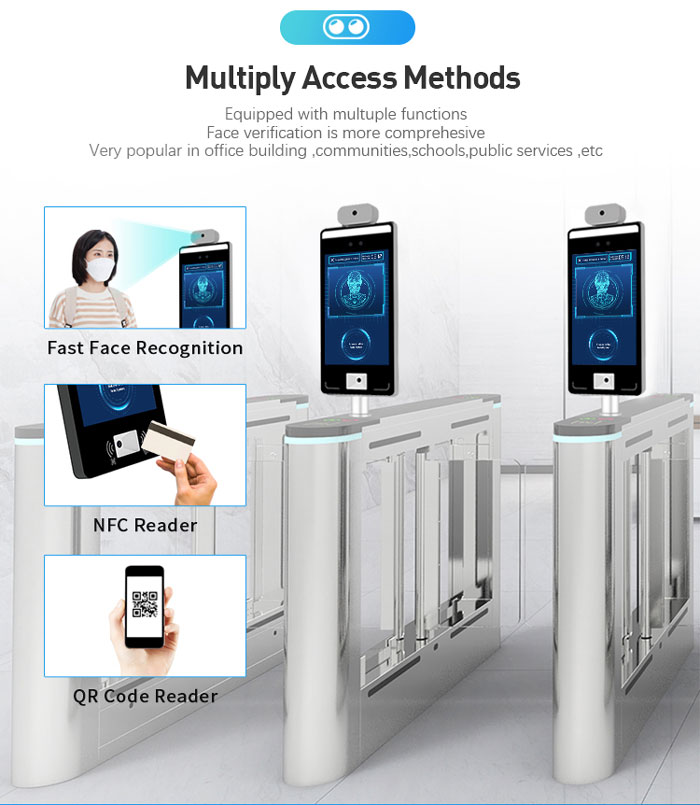

Access control, attendance, access gate

Usage environment

Indoor, outdoor

4/16

resolution ratio

200 megapixels

200 megapixels

Vertical wide Angle

65°

65°

Horizontal wide Angle

40°

40°

White light supplement

support

Infrared light supplement

support

Core

parameters

system

android 11.0

CPU

RK3566 4x ARM Cortex TM A55up to1.8GHz

SC

Memory 2G,storage 8G

human-computer interaction

display screen

8-inch, Full View,170°IPS LCD, resolution 800* 1280

touch screen

support

Human temperature measurement module [Optional]

Test accuracy: 0.1

test error:<±0.5

Temperature measurement distance: the recommended use distance is 50cm

Operating temperature: 15℃~40

communication model

Ethernet

10/100Mbps Ethernet

WIFI

Compliance with the IEEE802.11b/g/n standard (2.4G)

4G[Optional]

CAT1, domestic full Net

RM

human face

support

IC card[optional]

support

certificate of identification

Network ID card [Optional]

Local ID card needs external connection [optional]

Interface

data interface

USB 2.0*2

electric relay

*1


gorge line

RS4851

Wigan

The 26bit/ 34bit protocol

Go out switch

*1 [Expandable]

Fire linkage

*1 [Expandable]

key

Upgrade key

Source

adapter

DC12V/2A power supply

Environmental requirement

working temperature

-20℃~60

Operating humidity

20%90%(No condensation water drop state)

static electricity ESD

IEC61000-4-2,LEVEL3

levels of protection

IP65
